Sub Category Products

Carbonator

Carbonator machine is used to add or dissolve tiny bubbles (CO2) in beverages. The carbonation effect also adds a sparkle to wine, water, a dynamic head to tall glasses of beer, and generally adds a kick to adult drinks. The process infuses soft drinks with fizz. It tickles the tongues of youngsters with effervescence when they pop open a can of soda.
The machine can dissolve the CO2 in the final product or in the tank.
Final product carbonating, it shows an auxiliary pipeline of gasification, where the process is completed by an injector pipe. The carbonating inside of the tank occurs for the distribution of the trays, offering a large area of contact between the product and CO2, facilitating the absorption by the liquid.
This carbonator can be also supplied with deaerator to remove oxygen first in water before carbonation.

ADVANTAGES:

Maximum sanitary control
Totally made of stainless steel
Low pressure high efficiency equipment
Control panel designed based on your requirement

TECHNICAL DATA

Capacity range from 6,000ltrs/h to 60,000ltrs/h

Packaging equipment

Rinsing filling capping machine

Built with a stainless steel cover and high resistance anticorrosive material.
Rotary system knocking down the bottles and inside water injection with flow control.
Fixation grippers with soft neck handling of the bottles.
Filler with containers for liquids made of stainless steel.
Total opening on the topside for inspection and cleaning.
Filling valves made of sanitary steel, easy to disassemble.
Pneumatic cylinders for supporting the bottles with a regulator to work with several sizes of bottles.
Magnetic threaded head, which makes a uniform and precise torque with the possibility of fixing regulation.
Automatic magazine cap position with a system for caps distribution by synchronized star, offering a central disposal of the caps over the bottles.
Central lubrification.
Equipment closed by walls made of stainless steel frames and acrylic plates, including doors for inspection and intervention
All parts in contact with water are made of stainless steel AISI 304
Internal finishing grain 240 – 0,5 µm.< Ra < 1,0µm
Inlet butterfly valve type normally closed

Water Treatment

>> To produce pure water

Water treatment is process to which raw source water goes through to ensure it meets the qualities of what is considered good water for use in CSD or drinking. The treatment process is depending on two factors. These include:
1. The specific source of water (raw water specification). This may be river, borehole, waste water or municipal water
2. The desired final water specification. (Sometimes this if determined by the country standard’s body).
The type of treatment is developed after reviewing the source water specification in order to achieve the desired final specification.
Alpes provide various treatment units like media filters (Carbon, sand and Green-sand (Manganese)), Ozonation-units, cartridge-filters, Reverse-Osmosis units, Ultra-filtration units, chemical dosing units, Clarifiers and UV light treatment.

ADVANTAGES:

They are specifically designed to meet your final water specification no-matter the quality of your raw water
They are energy efficient
Easy to operate and maintain
All spare parts requirement is available on request.

TECHNICAL DATA

Available from 500l/h to 200,000l/h or more on request

Mixing tank

>> Designed for mixing different products

These are low speed mixing tanks. They are widely used in mixing of liquid-liquid, Liquid-solid products
The tank has its own agitation with adaptable blades to ensure that the materials can be cut in at low speed.
The tank can be made in single layer, double layer or three layers.
It has made with replaceable spray balls, Temperature sensor and level sensors

ADVANTAGES:

Enhanced operator safety
Flexibility to clean components faster due to availability of the spray ball.
Made from high quality SS materials
It supplied with adjustable legs.

TECHNICAL DATA

We have various sizes depending on required use, please contact us for more information.

Blender

>> Equipment designed for mixing

Main working principle of this equipment is making use of high-speed rotating impeller to sufficiently mix powder material and liquid and produce required mixture. The max temperature absorbed by this equipment is 80℃, and it can be used in the production of juice or flavoured milk or other beverages.

ADVANTAGES:

Light and portable
Energy saving, high efficiency and rapid mixing
Convenient to transport
All product contact surfaces are of good quality Stainless steel
It provides a complete product containment

TECHNICAL DATA

Depending on the use of the blender and the capacity required, we supply the blenders toiled to your need. Please contact us for more details.

PHE

>> To transfer heat between two fluids.

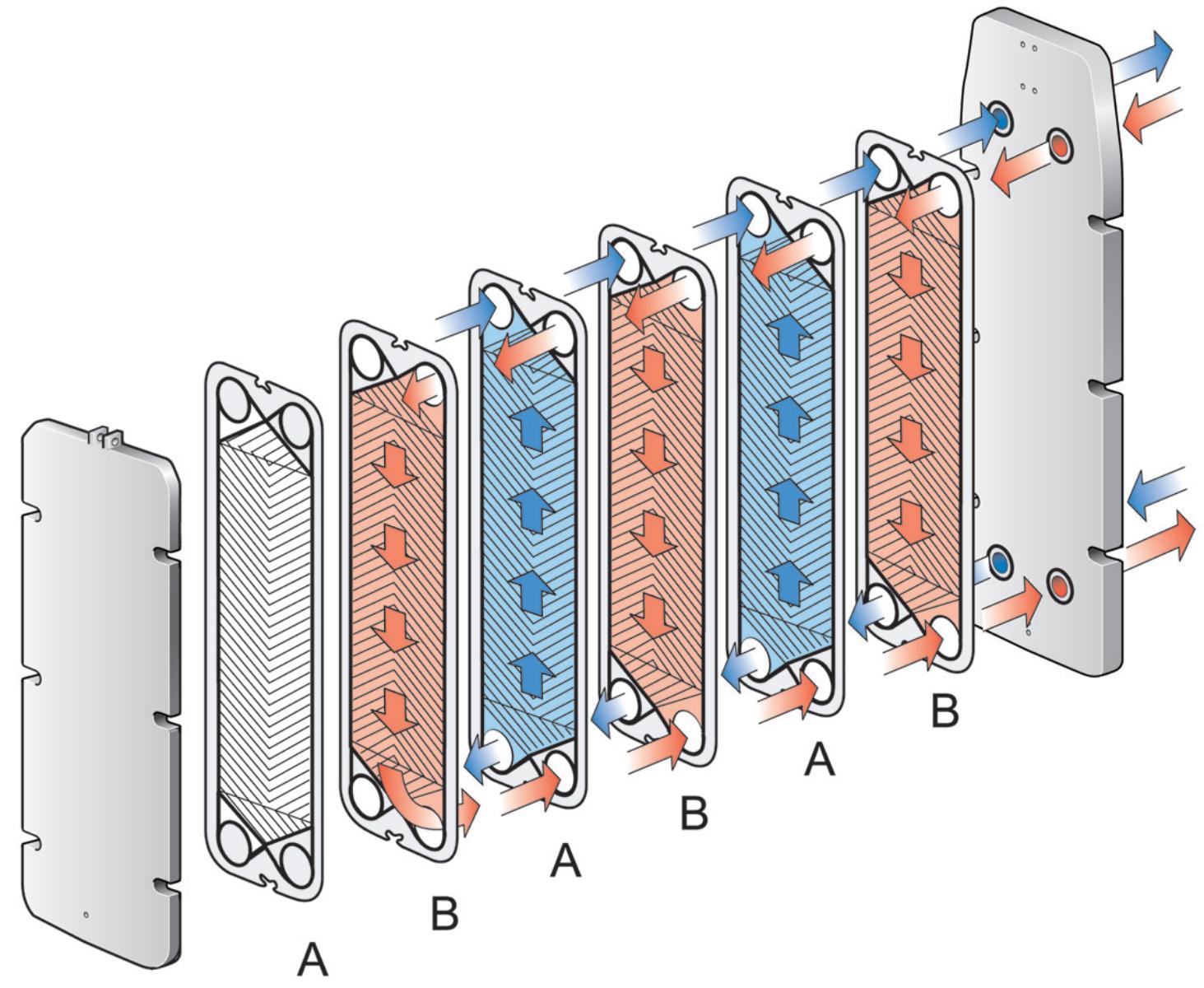

A plate heat exchanger (PHE) uses metal plates to transfer heat between two fluids. This has the major advantage that the fluids are exposed to large surface of exchange because the fluids are spread out over the plates.
Our PHE solutions are fully adjustable to your needs to provide you the most effective equipment for your heating or cooling application. Our PHE provide a high speed of the temperature exchange and the highest quality standards of hygiene.

ADVANTAGES:

Easy to use
Easy to connect to your process
Maintenance friendly
Super effective
Wide range of capacity & temperature
After sales assistance

TECHNICAL DATA

Range	Capacity (L/Hr)	Product out temperature (°C)
From	1.000	2
To	25.000	95

Pasteurizer

>> Pasteurization of any food liquid.

Skid mounted plate pasteurizer: Semi auto or full auto designed for pasteurization of any food liquids for the following industries :

Dairy industries: milk, cream, whey, ice cream
Fruit juice industries: fruit juices and syrups (with or without carbonation, with or without fruit pulp)
Beverage industries: beer pasteurization
Wine industries: thermal treatment and pasteurization of wines

ADVANTAGES:

Low space requirement thanks to compact design
Easy to operate thanks to fully automated pasteurization
Maximum energy recuperation
Minimal energy consumption
Simple cleaning at the press of a button
Suitable for both big and small customers, thanks to significant quantity flexibility

TECHNICAL DATA

Range	Capacity (L/Hr)	Product out temperature (°C)
From	200	2
To	30.000	95

Pumps

>> used for pumping various liquids

Pumps are equipment’s used in transportation of fluids (liquids or gas) or slurries by mechanical action. There two pumps available centrifugal pumps and the positive displacement pumps.
The centrifugal pumps available include:

End suction pumps
In-line pumps
Double suction pumps
Vertical multistage pumps
Horizontal multistage pumps
Submersible pumps
Self-Priming pumps
Axial-flow pumps
Axial-flow pumps

The positive pumps available include:

Reciprocating pumps- piston, plunger and diaphragm
Power pumps
Steam pumps
Rotary pumps – gear, lobe, screw, vane, regenerative and progressive cavity.

ADVANTAGES:

Hygiene pumps
Easily maintainable
Spare parts availability
Produced from the finest materials

TECHNICAL DATA

Available in various capacities as long as we know the following; Nature of the fluid, Flowrate required and height
